Emergency Shower and Eye Wash

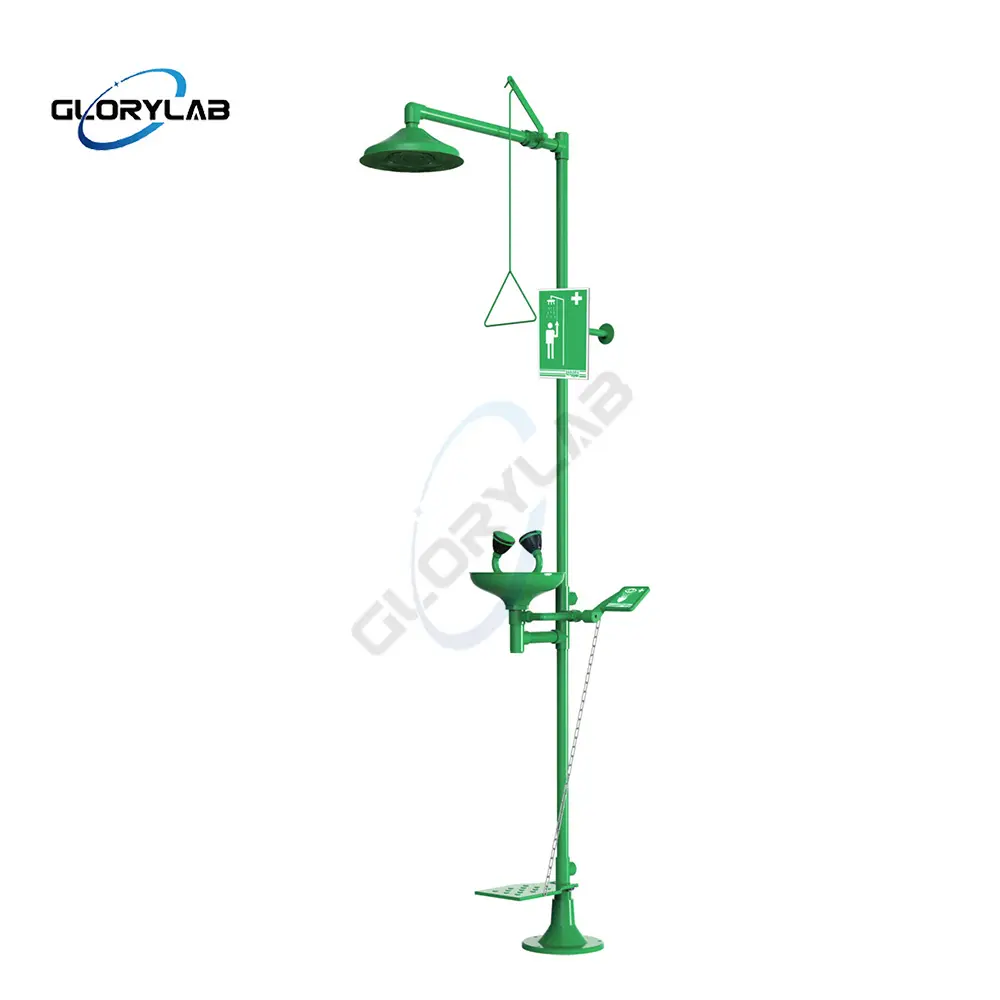

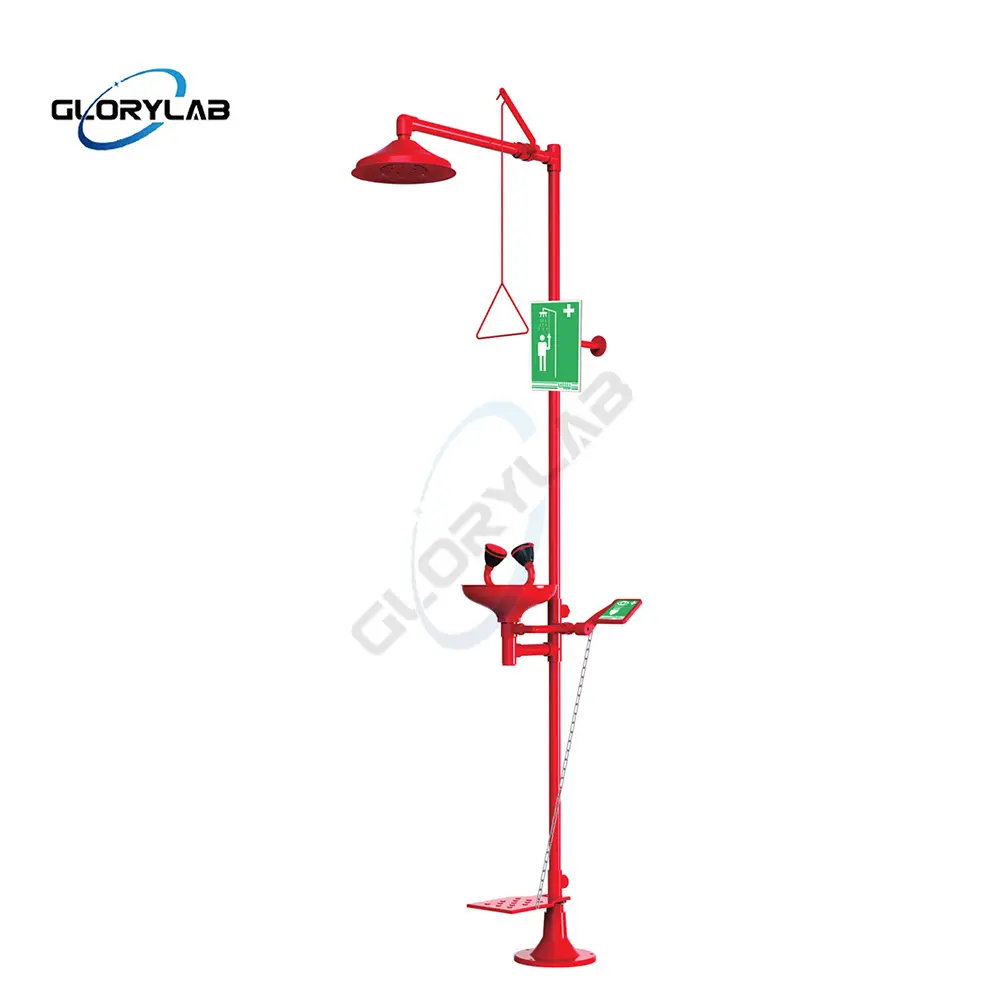

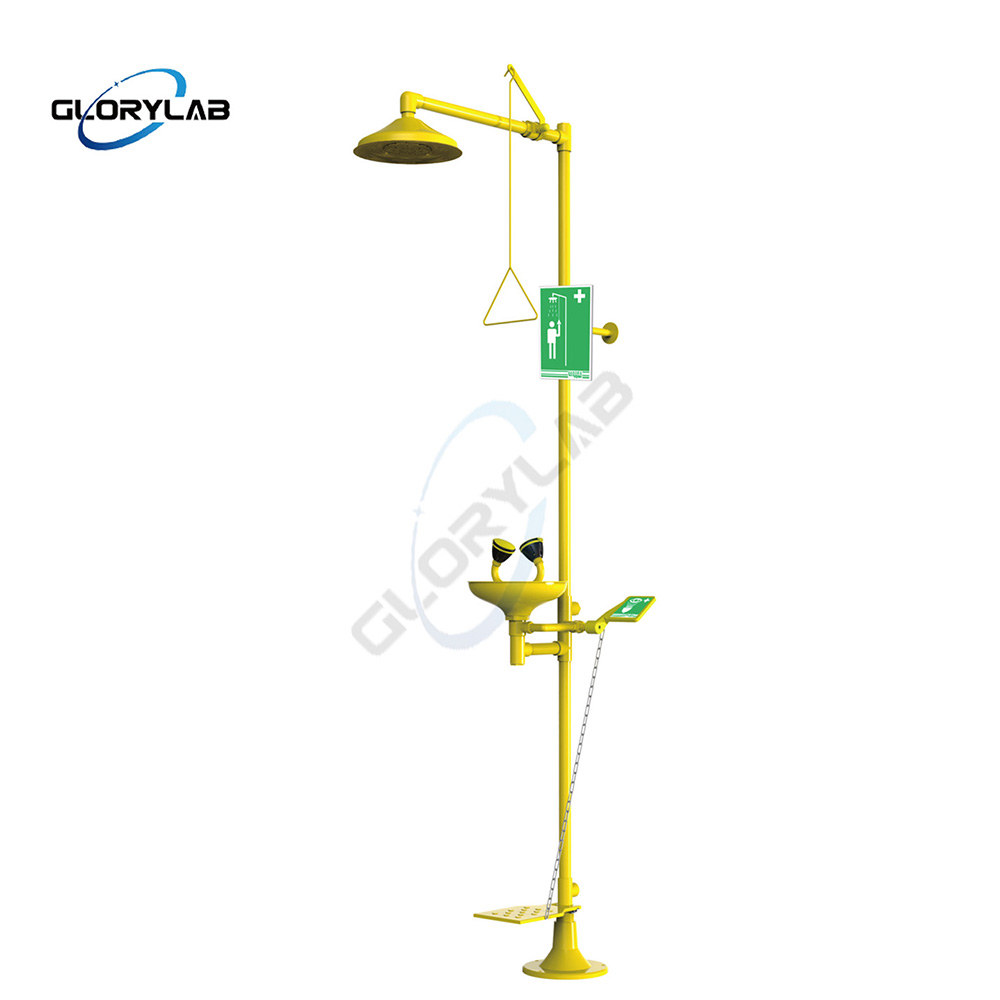

Emergency Shower, 304 Stainless Steel for Chemical Use
description1
description2
Product advantages of emergency shower with eye wash
1. Follow the American standard ANSI Z358.1, the highest standard in the field of eye wash.
2. Choose high-quality brass with a national grade of 59-1 (special grade A)/H63, high copper content/hardness, low impurities, and not easily deformed.
3. Adopting the latest modern CNC lathes/milling machines/automatic forming machines
Improve production efficiency, processing precision, and enhance production efficiency.
4. Adopting the world's most advanced CNC machining for multi-channel processing at once, ensuring ultra-high precision
Accuracy of machining dimensions and surface finish.
Safety emergency shower instructions

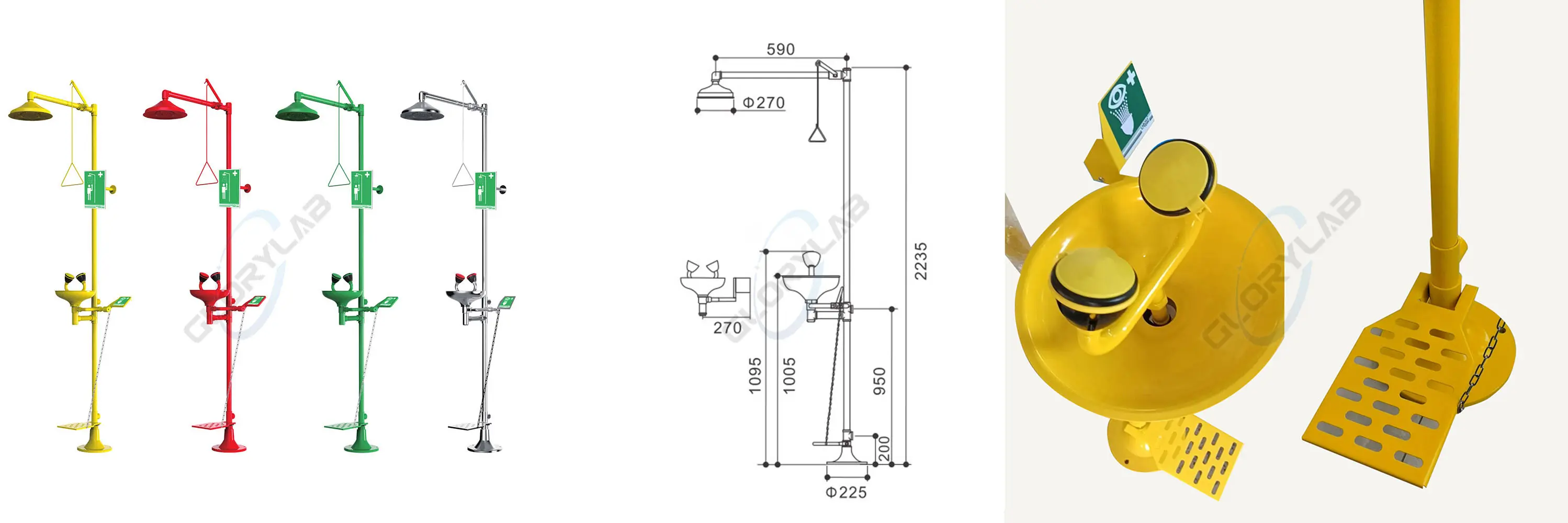

1. Structure:
Eye wash nozzle: a nozzle used to clean the eyes and face.
Eye wash nozzle dust cover: a dust-proof device used to protect the eye wash nozzle.
Shower nozzle: used for cleaning the whole body.
Switching valve: a valve device used to open and close water flow, divided into two types: push rod and foot pedal.
A device that guides water flow.
Filter: Used to filter out impurities that enter the eye wash solution.
Base: Fixed eye wash.
2. Specification and data of emergency shower:
Material: 304 stainless steel/epoxy coated stainless steel
Style: Manual/Foot operated
Performance: Corrosion resistance, acid, alkali, salt solution resistance
Water yield: eye wash nozzle water yield: 12-18L/min, spray water yield: 120-180L/min
Nozzle: high-density PP/S. S. Built in S-S filter screen to remove impurities from water. Require the use of 1 1/4 pipes to connect drinking water pipelines. Minimum water pressure: 4 bar
Water flow rate: Single outlet eyewash>6L/Min. Dual outlet eye wash bucket 10L/Min.
Emergency shower>30 l/min
